Advanced HLSL

This chapter has no dramatic new effect to show. It collects a handful of HLSL features that the previous chapters used without much comment, or that will make later shaders easier to write: values the pipeline hands our shaders without being asked, structs for passing data from stage to stage, and the constant buffers that every shader since Transformations has been reading, looked at properly this time.

System values

A shader is a function, and its inputs and outputs are tied to the rest of the pipeline by semantics, the names after the colons. Most are our own (POSITION, NORMAL, WORLD), matched by name between the input layout and the vertex shader, or between one stage and the next. A few, starting with SV_, are system values: values that the pipeline itself produces or consumes. They are HLSL's counterpart of GLSL's gl_ variables. We have met two already: SV_Position, the vertex shader's clip-space output (GLSL's gl_Position), and SV_Target, the pixel shader's colour. Here are some more. Microsoft's documentation lists them all.

Vertex shader values

Returning an SV_Position is the one thing a vertex shader must do before anything can be drawn, as with gl_Position. There is nothing new to say about it here, but it comes back in the pixel shader below with a different meaning.

GLSL lets a vertex shader set the size of a point primitive, in pixels, through gl_PointSize, which is useful for particles. Direct3D 11 has no such thing: a point list always rasterizes as one pixel per point. Points of any size are instead made by expanding each point into a small quad in a geometry shader, which is the subject of the next chapter.

An input the vertex shader can ask for is SV_VertexID (GLSL's gl_VertexID), the number of the vertex being processed: counting up from the first vertex for a plain Draw, or taken from the index buffer for DrawIndexed. With it, a shader can make vertices with no vertex buffer at all. The post-processing pass of Framebuffers builds its full-screen triangle that way:

fullscreen_vertex vs_main(uint id : SV_VertexID)
{
    fullscreen_vertex o;
    o.uv = float2((id << 1) & 2, id & 2);
    o.position = float4(o.uv * float2(2.0, -2.0) + float2(-1.0, 1.0), 0.0, 1.0);
    return o;
}

Its sibling SV_InstanceID (gl_InstanceID) numbers the copies made by an instanced draw, and comes up in Instancing.

SV_Position in a pixel shader

The pixel shader has system values of its own. Our lesson for this chapter draws four cubes and uses the first two of them; here is what it looks like:

Declare a pixel shader input as SV_Position and it does not contain the clip-space position the vertex shader wrote. By the time the pixel shader runs, the rasterizer has divided by w and applied the viewport, and the value holds the pixel's position in the render target: x and y in pixels, and z the depth that will be tested, 0 to 1. It is GLSL's gl_FragCoord, with one difference: the origin is the top-left corner of the window, with y growing downward, where OpenGL's is the bottom-left. x and y fall on pixel centres, so the top-left pixel is at (0.5, 0.5).

Our shaders share one struct between the vertex shader's output and the pixel shader's input, so the same field, position, is clip space on one side and pixel coordinates on the other. A common use for pixel coordinates is to compare two versions of an effect side by side, splitting the window down the middle. Our lesson does a simpler version: it darkens everything in the left half of its 1280-pixel window.

// SV_Position.x is in pixels: darken the left half of the window
if (p.position.x < 640.0) c *= 0.6;

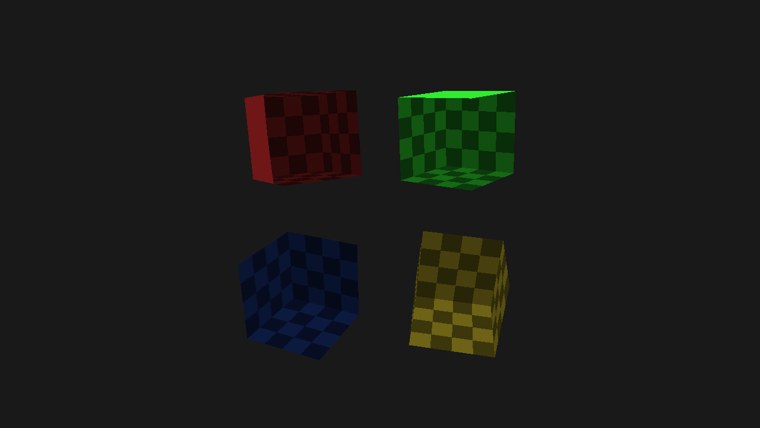

Look at the screenshot again: the red and blue cubes on the left are drawn darker than the green and yellow ones on the right, even though nothing else about them differs.

SV_IsFrontFace

In Face culling we saw that the rasterizer decides whether a triangle faces us from the order its corners appear on screen. A pixel shader can ask for that verdict as a bool marked SV_IsFrontFace, GLSL's gl_FrontFacing. It follows the rasterizer state, and ours declares counter-clockwise triangles to be the front (FrontCounterClockwise), so for a cube built counter-clockwise from outside, the outside is the front and the inside the back. A natural use is to give a closed object a different look inside from outside.

Normally we never see the inside of a cube, so the lesson cuts the faces nearest the camera away. HLSL's clip discards the pixel when its argument is negative, the counterpart of GLSL's discard, and here the argument is negative wherever a face's normal points too directly at the camera. Through the hole, the back faces show, and those are drawn as a dark checkerboard. All four pixel shaders do this through a shared function:

// Shared by all four pixel shaders. Faces whose normal points towards
// the camera are cut away (clip), so the inside of each cube shows.
float4 shade(vs_out p, bool front, float3 color)
{
    float3 n = normalize(p.normal);
    float3 to_eye = normalize(view_position - p.world);
    clip(0.35 - dot(n, to_eye));
    // a little shading per face, so the walls can be told apart
    float3 c = color * (0.55 + 0.45 * abs(dot(n, normalize(float3(0.5, 0.8, 0.3)))));
    // SV_IsFrontFace: the cube's outside is its front, its inside the back
    if (!front)
    {
        float2 cell = floor(p.uv * 4.0);
        c *= fmod(cell.x + cell.y, 2.0) < 1.0 ? 0.25 : 0.45;
    }
    // SV_Position.x is in pixels: darken the left half of the window
    if (p.position.x < 640.0) c *= 0.6;
    return float4(c, 1.0);
}

front is a parameter of the pixel shader's entry point, beside the struct coming from the vertex shader:

float4 ps_main(vs_out p, bool front : SV_IsFrontFace) : SV_Target { return shade(p, front, float3(1.0, 0.2, 0.2)); }

The vertex shader does not output it; the rasterizer supplies it for every pixel. Notice that the cut-away faces are the front faces that point at us, and the walls of the inside, which we see from behind, take the checkered branch. Had culling been on, the back faces would never reach the pixel shader and the test would be pointless.

SV_Depth

SV_Position.z can be read but not changed. A pixel shader can, however, write its own depth, by returning a value marked SV_Depth, as GLSL writes gl_FragDepth. The depth test then uses that instead of the rasterized depth. Point Shadows uses it to store the distance to the light as the depth:

// distance to the light, 0..1 over the far plane, written as the depth
float ps_main(face_vertex p) : SV_Depth
{
    return length(p.world - light_position) / far_plane;
}

It has a cost. Normally the GPU tests depth before running the pixel shader, and skips the shader for pixels that are hidden (early depth testing, from Depth testing). A shader that writes its own depth cannot be tested until it has run, so early depth testing is off for it. Shader model 5 offers a compromise, matching OpenGL 4.2's depth_greater and depth_less: return the depth as SV_DepthGreaterEqual or SV_DepthLessEqual, a promise to only push the depth farther than, or nearer than, the rasterized value. The hardware can then still reject some pixels early, the ones the promise guarantees will fail.

Structs between stages

GLSL passes values from one stage to the next with matching out and in variables, and offers interface blocks to group them. HLSL simply uses structs, and we have done so all along. Every member carries a semantic, and that semantic is what links an output of one stage to an input of the next. The struct names need not match, only the semantics. The vertex shaders of the last few chapters fill this one:

// Position and normal in world space, where the lighting is done.
struct vs_out
{
    float4 position : SV_Position;
    float3 world : WORLD;
    float3 normal : NORMAL;
    float2 uv : TEXCOORD;
};

and the pixel shaders take the very same struct as their input. That is the easiest way to keep the two sides in agreement, and one reason our shaders keep both stages in one file. The rule Direct3D enforces is that the pixel shader's inputs line up with the vertex shader's outputs, semantic for semantic, in the same order; it may leave off ones at the end that it does not need, but it cannot pick and choose. When a geometry shader sits in between, it receives an array of these structs, one per vertex of the primitive, as we will see in the next chapter.

Constant buffers

OpenGL's plain uniforms belong to one program: switch programs and every uniform has to be set again, even the projection and view matrices that are the same for everything in the frame. OpenGL's answer is the uniform buffer object, a buffer of uniform values that many programs can read at once.

Direct3D 11 has nothing but that. There are no loose uniforms; every value a shader reads from the application lives in a constant buffer, declared in HLSL as a cbuffer and backed on the CPU side by an ordinary buffer with D3D11_BIND_CONSTANT_BUFFER. Every lesson has one called transforms:

cbuffer transforms : register(b0)
{
    float4x4 model;
    float4x4 normal_matrix;
    float4x4 view;
    float4x4 projection;
    float3 view_position;
};

Its members are used by name, as globals, with no prefix. To fill it correctly from the CPU, we need to know where in the buffer each member lives.

Constant buffer packing

A buffer is only bytes. Nothing in it says which bytes are model and which are view_position; the shader compiler decides, and we have to lay out our CPU structure the same way. OpenGL has several layouts for uniform blocks, and LearnOpenGL picks std140, the one with fixed, documented rules. HLSL has one set of rules for every cbuffer, and they are fixed and documented too. They all follow from one idea: the buffer is an array of 16-byte registers, four 32-bit components each.

• Scalars (float, int, uint, and bool, which is 4 bytes here) take 4 bytes, and pack together into a register.
• A vector takes 4 bytes per component, and packs after earlier values as long as it does not cross into the next register. A float3 can follow a float in the same register; a float3 followed by another float3 cannot share one, so the second starts a new register.
• A matrix starts on a new register and takes one register per row (or column), so a float4x4 is four registers.
• Each element of an array starts on a new register, so float values[3] takes the start of three registers. The space after the last element is free for what follows.
• Structs start on a new register.
• The buffer as a whole is a whole number of registers: its size must be a multiple of 16 bytes.

The difference from std140 is mostly that HLSL packs more tightly. Here is LearnOpenGL's example block written as a cbuffer (with two members renamed, since vector and matrix are HLSL keywords), and the offsets the HLSL compiler gives it. We checked them with fxc /Fc, which prints a compiled shader's constant buffer layout:

cbuffer example
{                        // offset   size
    float value;         //   0        4
    float3 direction;    //   4       12   fits in the rest of register 0
    float4x4 transform;  //  16       64   registers 1 to 4
    float values[3];     //  80       36   registers 5, 6 and the start of 7
    bool boolean;        // 116        4   packs after values[2]
    int integer;         // 120        4
};                       // 124 bytes, so the buffer is 128

Under std140 the same members sit at 0, 16, 32, 96, 144 and 148, for 152 bytes. If a CPU structure gets the layout wrong, nothing reports an error; the shader just reads the wrong numbers. The habit that avoids trouble is to arrange members so that the padding is obvious, and write it out in the CPU structure. Our transforms is four matrices, 256 bytes, then a float3 at 256, which leaves 4 bytes of its register unused. The MASM structure in transforms.asm mirrors it with an explicit pad, so its size, 272 bytes, is a whole number of registers:

transforms struct
    model mat4 <>
    normal_matrix mat4 <>       ; inverse transpose of model, for normals
    view mat4 <>
    projection mat4 <>
    view_position vec3 <>       ; the eye, in world space
    pad real4 ?
transforms ends

MASM lays a structure out member after member with no gaps of its own (nothing here needs aligning beyond four bytes), so the offsets are simply the running sum of the sizes, and sizeof transforms is the 272 that create_constant_buffer is given. HLSL also has packoffset for placing a member at a register of our choosing, should the automatic rules ever be in the way.

Using constant buffers

How does a shader's cbuffer find the right buffer? OpenGL connects uniform blocks and uniform buffers through numbered binding points: a block is assigned a binding point (with glUniformBlockBinding, or layout(binding = 2) in GLSL 4.2), a buffer is attached to the same point with glBindBufferBase, and every program whose block uses that point sees that buffer.

Direct3D's binding points are the constant buffer registers, b0 to b13, and the shader names its register in the declaration: register(b0). The application binds a buffer to a register with VSSetConstantBuffers, PSSetConstantBuffers and so on. There is one difference from OpenGL: the registers belong to each shader stage separately, so the vertex shader's b0 and the pixel shader's b0 are two different slots. Our lessons bind the same buffer to all the stages they use with one procedure from gpu.asm:

; rcx: register (b0, b1, ...), rdx: buffer
;
; The same buffer in the same register for the vertex, geometry and pixel stages.
align 16
bind_constants proc slot:qword, buffer:qword
    vcall context, ID3D11DeviceContext_VSSetConstantBuffers, slot, 1, ADDR buffer
    vcall context, ID3D11DeviceContext_GSSetConstantBuffers, slot, 1, ADDR buffer
    vcall context, ID3D11DeviceContext_PSSetConstantBuffers, slot, 1, ADDR buffer
    ret
bind_constants endp

The methods want an array of buffers; the argument itself, kept in its shadow-space slot by the prologue, is a one-element array, so ADDR buffer is all it takes.

Any shader of any stage that declares a cbuffer at b0 reads whatever is bound there, however many shaders that is. Each stage has 14 registers, and a single constant buffer holds up to 4096 registers, 64 KB. (Direct3D 11.1 adds VSSetConstantBuffers1 and friends, which bind a window of a larger buffer, like glBindBufferRange.)

A simple example

LearnOpenGL demonstrates uniform buffers with four cubes, each drawn by a different shader program, all reading their matrices from one shared buffer. Our lesson does the same with four pixel shaders, one per colour, compiled from the same file by entry point name. Each is a one-line wrapper around shade:

float4 ps_main(vs_out p, bool front : SV_IsFrontFace) : SV_Target { return shade(p, front, float3(1.0, 0.2, 0.2)); }
float4 ps_green(vs_out p, bool front : SV_IsFrontFace) : SV_Target { return shade(p, front, float3(0.2, 1.0, 0.2)); }
float4 ps_blue(vs_out p, bool front : SV_IsFrontFace) : SV_Target { return shade(p, front, float3(0.2, 0.4, 1.0)); }
float4 ps_yellow(vs_out p, bool front : SV_IsFrontFace) : SV_Target { return shade(p, front, float3(1.0, 0.9, 0.2)); }

The entry point names are four strings, gathered in an array of pointers:

shader_path byte "src/4.advanced_d3d11/8.advanced_hlsl/advanced_hlsl.hlsl", 0
entry_red byte "ps_main", 0
entry_green byte "ps_green", 0
entry_blue byte "ps_blue", 0
entry_yellow byte "ps_yellow", 0
align 8
entries qword entry_red, entry_green, entry_blue, entry_yellow

shader_create from shader.asm compiles the file as usual, which gives us the vertex shader and its input layout. Then all four pixel shaders, ps_main included, are compiled by hand, with the same shader_compile that shader_create uses and the entry point chosen by name:

; the vertex shader and layout as usual; then four pixel shaders from the same file
invoke shader_create, ADDR base, ADDR shader_path, ADDR cube_layout, cube_layout_count
invoke filesystem_path, ADDR shader_path
mov path, rax
invoke filesystem_read, path, ADDR source_size
mov source, rax
lea rsi, entries
lea rdi, pixel_shaders
xor ebx, ebx
entry_points:
    invoke shader_compile, path, source, source_size, qword ptr [rsi + rbx * 8], "ps_5_0"
    mov blob, rax
    vcall blob, ID3D10Blob_GetBufferPointer
    mov r12, rax
    vcall blob, ID3D10Blob_GetBufferSize
    mov code_size, rax
    lea rax, [rdi + rbx * 8]
    vcall device, ID3D11Device_CreatePixelShader, r12, code_size, 0, rax
    release blob
    inc ebx
    cmp ebx, 4
    jb entry_points

The bytecode's address is kept in r12, which survives the call to GetBufferSize; its size goes to a local, since the size call's result arrives in rax, which then carries the address of the ebx-th slot of pixel_shaders for the new shader. Once the shader object exists the bytecode is no longer needed, and release frees it.

Without a program object to tie them together, a vertex shader and a pixel shader are combined just by binding both, so the four "programs" are one vertex shader and four pixel shaders bound in turn. In the frame, the transforms buffer is bound once to b0, and then each cube swaps in its pixel shader and is drawn at its corner:

invoke bind_constants, 0, transforms_buffer
invoke transforms_from_camera, ADDR t, ADDR cam
invoke shader_use, ADDR base

lea rsi, corners
lea rdi, pixel_shaders
xor ebx, ebx
cubes:
    vcall context, ID3D11DeviceContext_PSSetShader, qword ptr [rdi + rbx * 8], 0, 0
    ; model = translate(corner) * rotate(0.6 + 0.3 i, (0.3, 1, 0.2)) * scale(0.8)
    cvtsi2ss xmm1, ebx
    movf xmm0, 0.3
    mulss xmm1, xmm0
    movf xmm0, 0.6
    addss xmm1, xmm0
    lea rcx, rotation
    lea r8, spin_axis
    call m4_rotate
    invoke m4_identity, ADDR model
    movf xmm0, 0.8
    movss model.m[0], xmm0
    movss model.m[20], xmm0
    movss model.m[40], xmm0
    invoke m4_mul, ADDR turned, ADDR rotation, ADDR model
    invoke m4_translate, ADDR model, rsi
    invoke m4_mul, ADDR model, ADDR model, ADDR turned
    invoke draw_vertices, transforms_buffer, ADDR t, cube_vb, 36, ADDR model
    add rsi, sizeof vec3
    inc ebx
    cmp ebx, 4
    jb cubes

None of the pixel shaders is given the camera position. They read view_position from the buffer at b0, because that is where they declared it, and so does the vertex shader with its matrices.

There is one way in which our version is simpler than LearnOpenGL's. LearnOpenGL puts only the projection and view in the shared buffer and keeps the model matrix as a separate uniform, so the shared buffer is written once per frame. Ours keeps everything, model included, in one buffer, and draw_vertices rewrites the whole of it before each draw. That is cheap here, since every rewrite gets fresh memory from D3D11_MAP_WRITE_DISCARD (see Advanced Data), but in a large renderer it is usual to group constants by how often they change: one buffer per frame for the camera, one per material, one per object. The exercises suggest the split.

Constant buffers give us a few things at once: one update instead of one call per value, one place to change a value that many shaders use, and in general far more room than individual uniforms. The full program is here, and its shaders here.
