HDR

Every render target we have drawn into so far stores its colours as 8-bit unsigned normalized numbers: each channel is a whole number from 0 to 255, read back as a value from 0.0 to 1.0. Whatever a pixel shader returns is squeezed into that range on the way out. A value of 3.7 is stored as 1.0, and so is 1.2, and so is 250. For most of the earlier chapters that was fine, because we chose light colours and strengths carefully so that nothing ever went much past 1. But it is a restriction on the scene, not a property of light. Put two bright lights next to each other, or one very bright light in a dark room, and the sums go past 1 and get cut off. Large patches of the image become the same flat white, and all the detail that was there (a wood grain, the shape of a highlight) is gone.

We could dim every light until nothing overflows, but then we are no longer describing the scene we want; we are bending the lighting to fit the storage. The better approach is to let colours go as high as the lighting makes them while we render, and only at the very end turn that wide range into the 0 to 1 a monitor can show, in a way that keeps detail at both the bright and the dark end.

A monitor (a regular one, not an HDR display) can only show values from 0 to 1, but the lighting equations have no such limit. When we allow colours above 1 we are working in high dynamic range, or HDR: bright things can be very bright, dark things very dark, and both keep their detail. The ordinary 0 to 1 range is, by contrast, low dynamic range (LDR).

The idea comes from photography. A camera sensor can only record a limited range at once, so a photographer who wants both the sunlit window and the shadowed room takes several shots at different exposures: a short one that keeps the window from washing out, a long one that lifts the dark corners. Combined, they make an HDR image, which can then be viewed at whatever exposure brings out the part we care about. Our eyes do something similar continuously, opening up in the dark and closing down in bright light.

HDR rendering works the same way. We render into a target that can hold the full range, so nothing is lost, and as a final step we convert the HDR values back to LDR. That conversion is called tone mapping. There are many tone mapping operators, each trading off detail in the darks against detail in the brights, and most have a parameter like a camera's exposure that slides that balance one way or the other.

A pleasant side effect is that lights can be given strengths that reflect their real brightness. The sun really is many times brighter than a desk lamp, and with HDR we can say so: a light of strength 100 is not a mistake that clamps to white, it is just a very bright light, and tone mapping decides how it ends up on screen.

Floating point framebuffers

To keep values above 1 we need a render target that does not clamp them. The 8-bit formats we have used (DXGI_FORMAT_R8G8B8A8_UNORM and its _SRGB twin) are UNORM formats: unsigned, normalized. When the output merger writes a float into one, it clamps it to 0..1 first and then rounds it to the nearest of 256 steps. Floating point formats skip all of that and store the value as it is.

DXGI has a few of them that can be render targets:

• DXGI_FORMAT_R16G16B16A16_FLOAT: four 16-bit "half" floats, 8 bytes per pixel. Halves reach about 65000 and keep roughly three significant decimal digits, which is plenty for colour. This is the usual choice, and ours.
• DXGI_FORMAT_R32G32B32A32_FLOAT: four full 32-bit floats, 16 bytes per pixel. Four times the memory of an 8-bit target, and more precision than colour needs.
• DXGI_FORMAT_R11G11B10_FLOAT: three small floats packed into 4 bytes, no alpha and no negative values. Half the size of the 16-bit format, and a common choice when bandwidth matters.

Our floating point target is made with the same procedure as the off-screen targets in Framebuffers, create_render_target from gpu.asm: a texture with two views, a render target view to draw into it and a shader resource view to read it afterwards.

; A texture that can be drawn into (rtv) and then read (srv): GL's framebuffer colour attachment.
render_target struct
    texture qword ?     ; ID3D11Texture2D
    rtv qword ?         ; ID3D11RenderTargetView
    srv qword ?         ; ID3D11ShaderResourceView
render_target ends

; rcx: &render_target, rdx: width, r8: height, r9: format, [rsp+32]: samples (1 unless MSAA)
align 16
create_render_target proc out_ref:qword, w:qword, h:qword, format:qword, samples:qword
    local desc:D3D11_TEXTURE2D_DESC
    USING rbx
    SaveRegs
    mov rbx, out_ref
    invoke mem_zero, ADDR desc, sizeof D3D11_TEXTURE2D_DESC
    mov eax, dword ptr w
    mov desc._Width, eax
    mov eax, dword ptr h
    mov desc.Height, eax
    mov desc.MipLevels, 1
    mov desc.ArraySize, 1
    mov eax, dword ptr format
    mov desc.Format, eax
    mov eax, dword ptr samples
    mov desc.SampleDesc.Count, eax
    mov desc.BindFlags, D3D11_BIND_RENDER_TARGET or D3D11_BIND_SHADER_RESOURCE
    lea rax, [rbx].render_target.texture
    vcall device, ID3D11Device_CreateTexture2D, ADDR desc, 0, rax
    AssertHr
    lea rax, [rbx].render_target.rtv
    vcall device, ID3D11Device_CreateRenderTargetView, qword ptr [rbx].render_target.texture, 0, rax
    lea rax, [rbx].render_target.srv
    vcall device, ID3D11Device_CreateShaderResourceView, qword ptr [rbx].render_target.texture, 0, rax
    RestoreRegs
    ret
create_render_target endp

The format is a parameter, so making an HDR target is only a matter of which format we pass. It also needs a depth buffer of its own size, since the scene is drawn into it with depth testing:

; configure floating point framebuffer
; ------------------------------------
invoke create_render_target, ADDR hdr_target, scr_width, scr_height, DXGI_FORMAT_R16G16B16A16_FLOAT, 1
invoke create_depth_buffer, scr_width, scr_height, 1
mov hdr_depth, rax

Drawing into a float target is no different from drawing into any other. Every frame we bind it, clear it, draw the lit scene, and then switch to the back buffer for a second pass that reads the float texture and writes the final image:

; 1. render scene into floating point framebuffer
; -----------------------------------------------
call unbind_textures
vcall context, ID3D11DeviceContext_OMSetRenderTargets, 1, ADDR hdr_target.rtv, hdr_depth
vcall context, ID3D11DeviceContext_RSSetViewports, 1, ADDR viewport
vcall context, ID3D11DeviceContext_ClearRenderTargetView, hdr_target.rtv, floats(0.0, 0.0, 0.0, 1.0)
movf xmm3, 1.0                          ; the depth, a float: xmm3
vcall context, ID3D11DeviceContext_ClearDepthStencilView, hdr_depth, D3D11_CLEAR_DEPTH, 0, 0
; ...
invoke draw_vertices, transforms_buffer, ADDR t, cube_vb, 36, ADDR tunnel

; 2. render floating point colour buffer to the screen, tone mapped
; -----------------------------------------------------------------
; One triangle covering the screen, made by the vertex shader from SV_VertexID alone.
vcall context, ID3D11DeviceContext_OMSetRenderTargets, 1, ADDR backbuffer_rtv, 0
invoke update_buffer, tone_buffer, ADDR tone, sizeof tone_constants
invoke shader_use, ADDR hdr_shader
invoke bind_constants, 1, tone_buffer
invoke bind_texture, 0, hdr_target.srv
vcall context, ID3D11DeviceContext_Draw, 3, 0

ADDR hdr_target.rtv is the address of the struct's rtv field, which is exactly the one-element array of views that OMSetRenderTargets asks for. The unbind_textures call at the top matters in Direct3D: at the end of the previous frame the HDR texture was still bound as a shader resource for pass 2, and a texture cannot be bound for reading and writing at the same time. If we bind it as a render target while it is still in a shader slot, the runtime quietly unbinds it for us and reports a warning in the debug layer; clearing the slots ourselves keeps that explicit. Pass 2 is the full-screen triangle from Framebuffers: a Draw of 3 vertices with no vertex buffer, the vertex shader building three corners from SV_VertexID, and the shader created with no input layout (invoke shader_create, ADDR hdr_shader, "src/5.advanced_lighting/6.hdr/hdr.hlsl", 0, 0). The back buffer is bound with no depth buffer, a 0 for the depth view, since a single triangle needs no depth test.

The scene

To have something worth tone mapping, the scene is a long tunnel: the cube from earlier chapters stretched to 5 by 5 by 55 units, which we look at from inside. Since we see its inner faces, the pixel shader flips the normals. Four point lights hang in it: three very dim coloured ones near the camera, and one white light at the far end that is two hundred times brighter than anything else.

; lighting info: one bright light at the far end, three dim coloured ones near the camera
light_positions vec4 <0.0, 0.0, -49.5, 0.0>, <-1.4, -1.9, -9.0, 0.0>, <0.0, -1.8, -4.0, 0.0>, <0.8, -1.7, -6.0, 0.0>
light_colors vec4 <200.0, 200.0, 200.0, 0.0>, <0.1, 0.0, 0.0, 0.0>, <0.0, 0.0, 0.2, 0.0>, <0.0, 0.1, 0.0, 0.0>

The lights never move, so they are copied into the constant buffer's struct and sent once, before the render loop, and the tunnel's model matrix is made there too:

; lighting info
; -------------
invoke mem_copy, ADDR lights.positions, ADDR light_positions, 4 * sizeof vec4
invoke mem_copy, ADDR lights.colors, ADDR light_colors, 4 * sizeof vec4
invoke update_buffer, lights_buffer, ADDR lights, sizeof lights_constants

; the tunnel: a long box around the camera, seen from inside
invoke m4_translate, ADDR tunnel, ADDR tunnel_center
invoke m4_scale, ADDR scratch, ADDR tunnel_size
invoke m4_mul, ADDR tunnel, ADDR tunnel, ADDR scratch

The lighting is plain diffuse with inverse-square falloff, the physically correct kind from Gamma Correction, and no ambient term. The point to notice is the last line: whatever the loop adds up is returned as it is.

float4 ps_main(vs_out p) : SV_Target
{
    float3 color = albedo.Sample(linear_wrap, p.uv).rgb;
    // seen from inside the tunnel
    float3 n = -normalize(p.normal);
    float3 lit = 0.0;
    for (int i = 0; i < 4; i++)
    {
        float3 to_light = light_positions[i].xyz - p.world;
        float d = length(to_light);
        lit += max(dot(n, to_light / d), 0.0) * color * light_colors[i].rgb / (d * d);
    }
    // no clamping: values far above 1 are kept, which is the point
    return float4(lit, 1.0);
}

The end wall of the tunnel is 3 units from the big light, so it receives \(200 / 3^2 \approx 22\) times the wood's colour; the side walls next to the light, 2.5 units away, get about 32 times. Into an 8-bit target all of that would be stored as 1. In the float target it is stored as 22 and 32, and the next pass gets to decide what to do with it.

If pass 2 only copied the texture to the screen, we would gain nothing: the back buffer is 8-bit, so the clamp would simply happen there instead. The far end of the tunnel would be a flat, featureless white, as if we had never used a float target at all. Something has to bring the values down into 0..1 first.

Tone mapping

Tone mapping is a function from HDR colour to LDR colour: it takes any value from 0 upwards and returns something from 0 to 1, ideally keeping differences visible over the whole range. Plain clamping is the worst possible such function, since it maps everything above 1 to the same value.

One of the simplest good ones is Reinhard tone mapping, which divides the colour by itself plus one:

Small values pass almost unchanged (0.1 becomes 0.09), 1 becomes 0.5, and huge values creep towards 1 without ever reaching it, so 22 and 32 still come out different (0.957 and 0.970). In HLSL it is one line:

float3 mapped = color / (color + 1.0);

Reinhard spreads the whole range evenly, which tends to make the image look a little flat and favours the bright end: the dark parts of the scene get compressed along with everything else.

Our lesson uses an operator with a knob instead. Exposure tone mapping is

For small values it is close to \(c \cdot \text{exposure}\), so the exposure scales the darks like a camera's shutter time; for large values it flattens out towards 1, softly, rather than hitting a wall. Raising the exposure brightens the dark parts and pushes the bright parts into saturation; lowering it does the reverse. A game with a day-night cycle might use a low exposure at noon and a high one at night, and keep the same light strengths throughout.

The curves show the differences at a glance. Clamping is a straight line that stops dead at 1. Reinhard rises slowly and is still well short of 1 at 6. The exposure curves rise faster the larger the exposure, so exposure 2 has used up nearly all of its range by an HDR value of 2, while exposure 0.5 still has room to tell 4 from 6.

Here is the whole tone mapping pixel shader:

cbuffer tone : register(b1)
{
    float exposure;
    int enabled;
};

Texture2D hdr_buffer : register(t0);
SamplerState linear_wrap : register(s0);

float4 ps_main(fullscreen_vertex p) : SV_Target
{
    float3 color = hdr_buffer.Sample(linear_wrap, p.uv).rgb;
    // The back buffer view is sRGB, so the result is gamma encoded on the
    // way out; no pow(1/2.2) here.
    if (enabled) color = 1.0 - exp(-color * exposure);
    return float4(saturate(color), 1.0);
}

LearnOpenGL's version ends with pow(mapped, 1.0 / 2.2) to gamma-correct the result. We do not need it: since Gamma Correction the back buffer has been written through an R8G8B8A8_UNORM_SRGB render target view, which applies the sRGB curve in hardware as each pixel is stored. The order of the steps still matters, though. Tone mapping works on linear light, so it must come before the sRGB encoding, and it does: the shader works on linear values and the encoding happens in the output merger, after the shader is done.

When enabled is 0 the colour goes straight to saturate, which clamps to 0..1. That is exactly what the 8-bit back buffer would do anyway; writing it out just makes the comparison honest. The two values arrive in a small constant buffer that mirrors the cbuffer, padded to a whole 16-byte register:

tone_constants struct
    exposure real4 ?
    enabled dword ?
    pad dword 2 dup(?)
tone_constants ends

tone tone_constants <1.0, 1>

and the keyboard drives them: Tab toggles tone mapping, and holding Up or Down changes the exposure by one unit per second, never letting it fall below 0.01:

; mode 0 tone maps, mode 1 shows the values clamped
invoke window_mode, 2
mov ecx, 1
sub ecx, eax
mov tone.enabled, ecx
invoke key_down, VK_UP
test eax, eax
jz not_up
    movss xmm0, tone.exposure
    addss xmm0, delta_time
    movss tone.exposure, xmm0
not_up:
invoke key_down, VK_DOWN
test eax, eax
jz not_down
    movss xmm0, tone.exposure
    subss xmm0, delta_time
    movf xmm1, 0.01
    maxss xmm0, xmm1
    movss tone.exposure, xmm0
not_down:

key_down, from window.asm, reports whether a key is held right now, where window_mode counts presses; adding delta_time while Up is held makes the change one unit per second whatever the frame rate. maxss is SSE's scalar maximum, the clamp at 0.01 in one instruction.

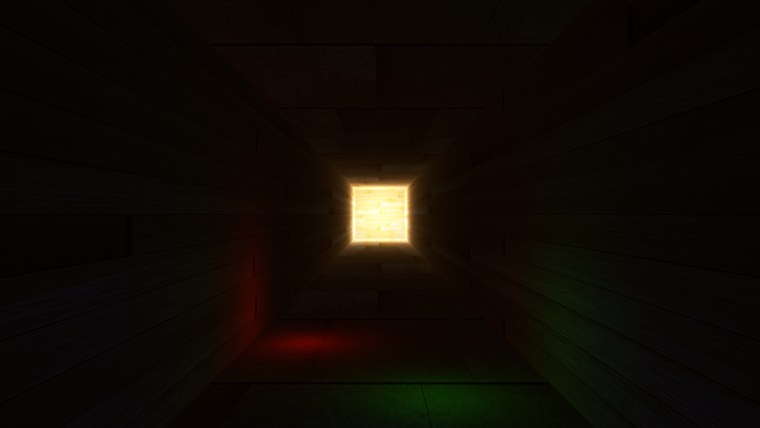

The program starts with tone mapping on and an exposure of 1:

On the left, tone mapped; on the right, after Tab, clamped. Near the camera the two are nearly identical, as they should be: values there are small, and \(1 - e^{-c}\) is close to \(c\) for small \(c\). The difference is at the far end. Clamped, the end wall is a uniform glare; tone mapped, the planks and their seams are still visible inside the bright square. Hold Down to lower the exposure and the far end calms down until the wood is plainly visible, while the near end sinks into black. Hold Up and the dim coloured lights by the camera come out of the dark, while the far end burns out. No single exposure shows everything, but every part of the scene is there to be shown, which is what the float target bought us.

The full program is here, its lighting shader here and the tone mapping shader here.

More HDR

The two operators above are only the start of a large family. Some are fitted to the response of film stock and give a pleasing roll-off in the highlights (the "filmic" curves many games use, such as the ACES approximation); some work on luminance only, to avoid shifting colours as they saturate; some adapt locally, compressing a bright window differently from the dark wall around it.

Another common addition is automatic exposure, or eye adaptation: measure the average brightness of the last frame (for example by generating mipmaps of the HDR texture down to 1x1, which Direct3D will do with GenerateMips), and drift the exposure towards a value that suits it. Walk from a dark corridor into daylight and the image starts out blown out, then settles, much as our eyes do.

Our tunnel is a small demonstration of a big idea. In a full scene with many lights the benefits add up: nothing clamps when lights overlap, light strengths can be set to plausible values, and detail survives at both ends. It also makes effects built on brightness, such as bloom, far easier to control, because "brighter than 1" finally means something.

Additional resources

• Does HDR rendering have any benefits if bloom won't be applied?: a long, careful answer on what HDR buys a renderer by itself.
• What is tone mapping? How does it relate to HDR?: the photographer's view of tone mapping, with good example images.
• DXGI_FORMAT: every format Direct3D knows, including the float ones.
• LearnOpenGL's HDR: the OpenGL version of this chapter.

Exercises

1. Replace the exposure curve in hdr.hlsl with Reinhard, color / (color + 1.0), and compare the far end of the tunnel and the dim lights near the camera with what exposure 1 gives.
2. Change the HDR target's format to DXGI_FORMAT_R8G8B8A8_UNORM and run the program with tone mapping on. Explain what you see, and why tone mapping can no longer help.
3. Try DXGI_FORMAT_R11G11B10_FLOAT for the HDR target. Can you see any difference from the 16-bit format? What does the format give up, and why does this lesson not need it?
4. Make the exposure adjust itself: every frame, move it a little towards a target that is larger when the camera is near the dark entrance of the tunnel and smaller when it is near the bright end (the camera's z position is enough to decide).
